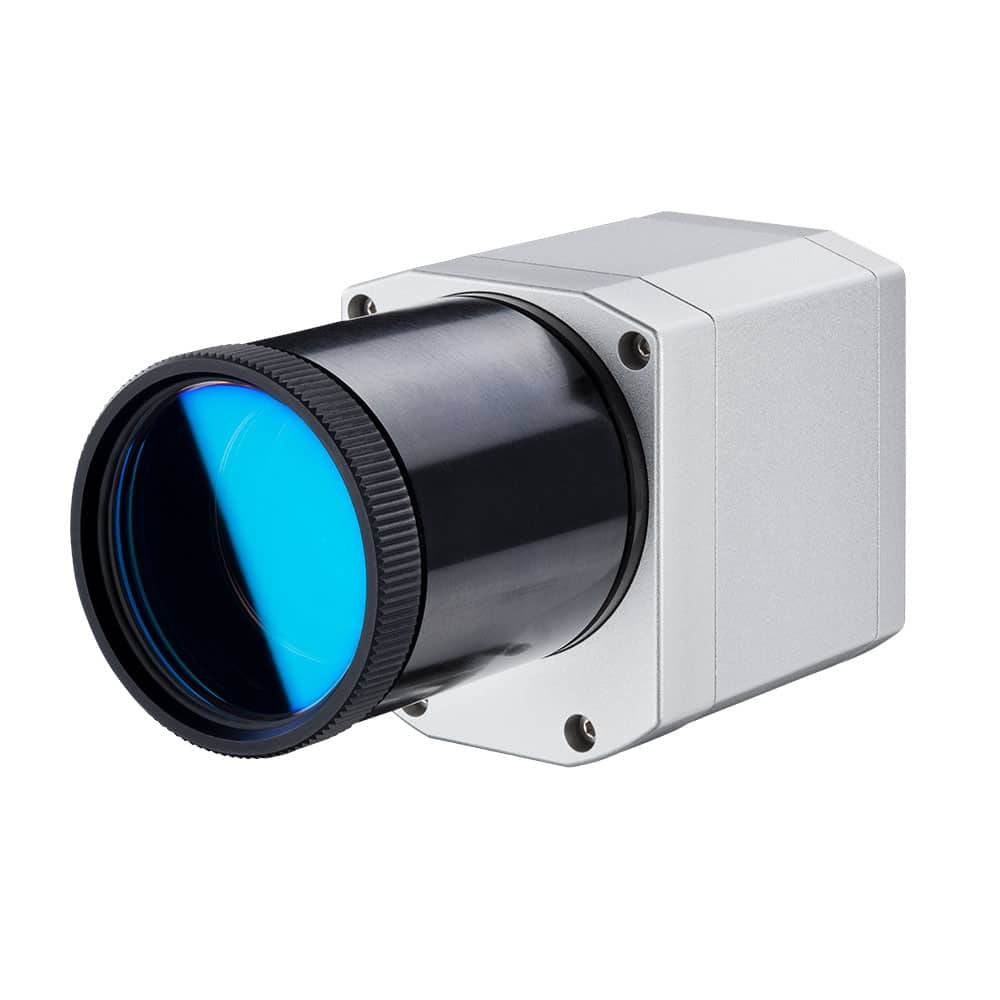

Optris PI 1M Infrared Camera

Optris PI 1M Short Wavelength Infrared Camera

Ultra Compact Short Wavelength Camera for Metal Surfaces

Designed for Non-Contact Temperature Measurement of Metals

With its short measurement wavelength combined with a fast reaction time of 1 ms, this compact thermal camera is perfectly suited for non-contact temperature measurement of metallic surfaces.

>> Click here to learn about Viper steel refractory monitoring solutions.

Since metals have a higher emissivity, the Optris PI 1M was designed with a short measurement wavelength of 1 μm, as opposed to the conventional range of 8-14 μm.

Its high-performance sensor electronics allow for a quick reaction time of 1 ms for temperature measurement.

REQUEST QUOTEPDF DOWNLOAD
Optris PI 1M

Specifications Overview

Technical Specs:

  • Detector: CMOS (15 µm x 15 µm)
  • Optical resolution (switchable) / Frame rate:
    764 x 480 pixels @ 32 Hz; 382 x 288 pixels @ 80 Hz (switchable to 27 Hz); 72 x 56 pixels @ 1 kHz; 764 x 8 pixels @ 1 kHz (fast line-scanning mode)
  • Thermal sensitivity (NETD*): < 2 K (< 900 °C); < 4 K (< 1400 °C) [*at 27 Hz, 32 Hz and 80 Hz]
  • PC interface: USB 2.0 / Optional USB to GigE (PoE) interface
  • Spectral range: 0.85 – 1.1 μm
  • Ambient temperature: 0 °C – 50 °C (32 – 122°F)
  • Relative humidity: 20 – 80%, non-condensing
  • Lens options
  • Power supply: USB

Optris PI 1M Key Features:

  • Real-time analog output with 1 ms response time
  • Highly dynamic CMOS detector with up to 764 x 480 px resolution
  • Wide temperature measurement ranges: 450 °C – 1800 °C (842 °F to 3272 °F) without sub-ranges
  • Compact size and designed for use in heavy industrial environments
  • Up to 1kHz frame rate for fast processes
  • Optional 1kHz line-scanning function
  • Tailored AR coating
  • Supported by ViperVision software
